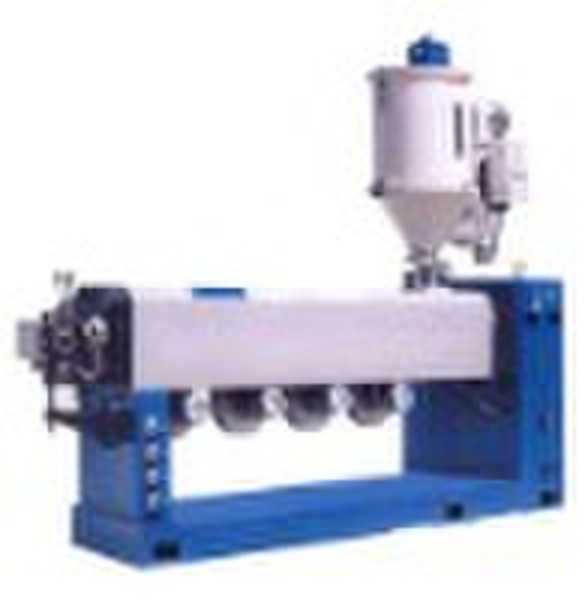

SJ-90x25 Single-screw Plastic Extruder

Application The single-screw plastic extruder is used for SPVC,PE extrusion and molding.with the corresponding auxiliaries,it can be used for coating cable,producing films, tubes,rods,plates and granulating materials. Characteristics (1) A wide speed range, good adaptability to different type of plastics and easy to operate (2) IKV system in Feeding part of barrel for speeding up the transfer rate of solid (3) small temperature fluctuation during heating by using the time-proportion and PID automatic temperature controller. According to different plastics processing, the ideal heating temperature can be chose and automaticly heating the barrel and the head. (4) Overload protection (5) Speed show by Tachometer Configuration The single-screw plastic extruder is made up of screw ,barrel, head bracket, gear box, water and fan cooling system,lubrication system,the electrical control cabinet, and other component parts. 1. the screw and the barrel the material of is the 38CrMoAlA alloy steel,processed by Nitrogen.High hardness and good wear and corrosion resistance. The four outer surface heaters are the heating source for plastic heating,and there are four temperature-test points. 2. the gear box i=1:11.2,transmission stable,reliable. 3.the head bracket two choices of the structure :one is thread link,the other is hough lubrication system Oil pool and splash lubrication are used for lubricating the gears and bearings,and the mandatory recycling pump is added to the gear box. Lubricant brand is #40 machine oil.Technical data screw diameter:Φ90mm screw length/diameter ratio:25:1 screw speed:13130rpm power for heating :26kw heating section: 4 the main motor type:Z4-200-31 power:90kw rotate speed:1500rpm the fan motor type:DF-5 power:0.55kw wind power:14m³/min output of extrusion: 130-280kg/h(SPVC) barrel cooling:fan cooling,4 sections water cooling,2 section center height:1000mm
