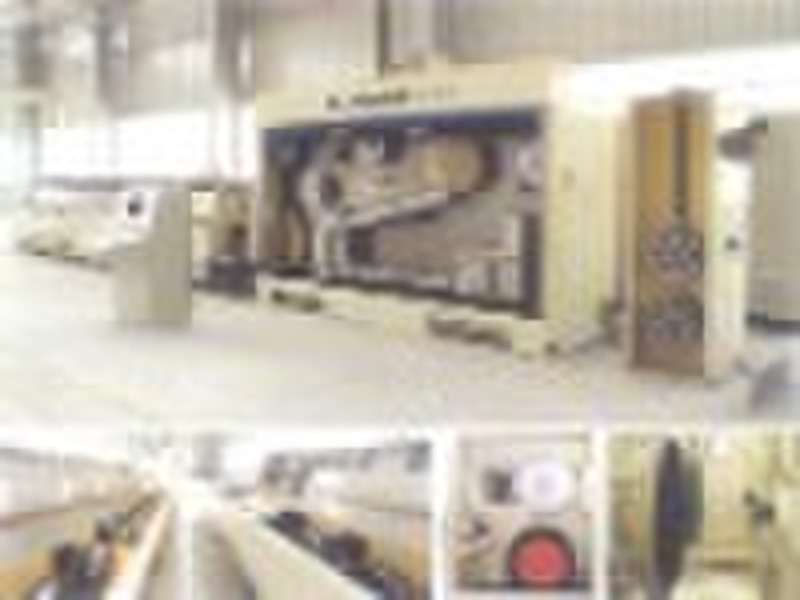

Copper Wire Drawing Machine with continuous anneal

Manchine: break dwon machine(drawing machine) 1.Main technical data 1.1 diameter of inlet wire φ8mm-φ9mm 1.2 diameter of output wire φ1.2mm-φ4.0mm 1.3 maximum speed of output wire 23m/s(φ1.38mm) 1.4 diameter of block φ450mm 1.5 maximum drawing passes 13 1.6 dimensions of drawing mould φ38×25 1.7 Capacity of wire reservoir 9m 1.8 power of main motor 250KW(DC) 1.9power of the motor for the constant-speed wheel 75KWDC 1.10 power of annealing device 60V×5800A 1.11Dimension 28000×5310×4000mm 2.Main Components 2.1 arm payoff stand 1 set 2.2 450/13 Main drawing machine 1 set 2.3 continuous annealing device 1set 2.4 Accumulator 1 set 2.5 φ630 automatic dual-reel take-up 1 set 2.6 The pointing and stringing machine 1set 2.7 Steam generator 1set 2.8 Supply station for main machine 1set 2.9 Drawing liquid supply1set 2.10 Water supply station for anneal 1 set 2.11 φ900 coiling system 1 set 2.12 Electric control and operating desk 1 set
